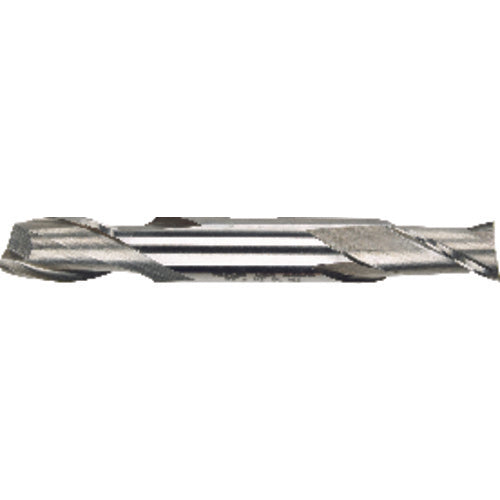

9/32″ Dia. × 3/8″ Shank × 9/16″ DOC × 3-3/8″ OAL, HSS, Uncoated, 2 Flute, 30° Helix, Plain, External, Center Cutting, Solid End Mill Series/List #1896G
Item #: MT2396060
Brand: Morse Cutting Tools
Model #: 96060
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9/32″ |
| Length Group | Regular |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 9/16″ |
| Style | Finishing |
| Overall Length (OAL) | 3-3/8″ |
| Decimal Equivalent | 0.28125″ |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
| Coating | Uncoated |
| Series/List # | 1896 |
| Flute Count (NOF) | 2 |
| Package Height | .37500 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right |
| Shank Type | Plain |
| Single / Double End | Single |
| End Shape | Center Cutting |
| Center Cutting | Yes |
| Usable Length (LU) | 9/16″ |
