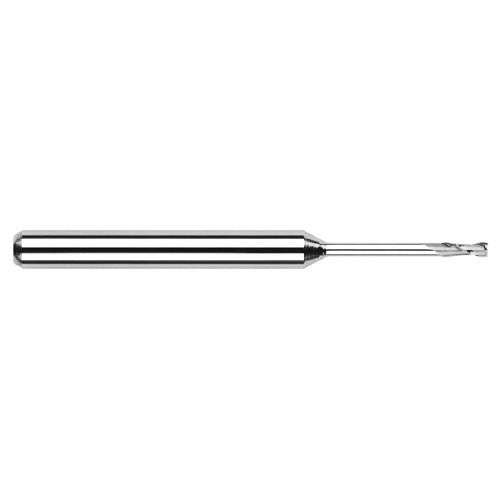

Miniature End Mills - Long Reach, Standard Flute - 0.0470″ (3/64″) Cutter Diameter × 0.1410″ Length of Cut × 0.5700″ Reach Carbide Square End Mill, 2 Flutes
Item #: GE90952047
Brand: Harvey Tool
Model #: 952047
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/64″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 0.57″ |
| Depth of Cut Maximum (APMX) | 0.141″ |
| Neck Length (LN) | 0.429″ |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | 12D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.046875″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
