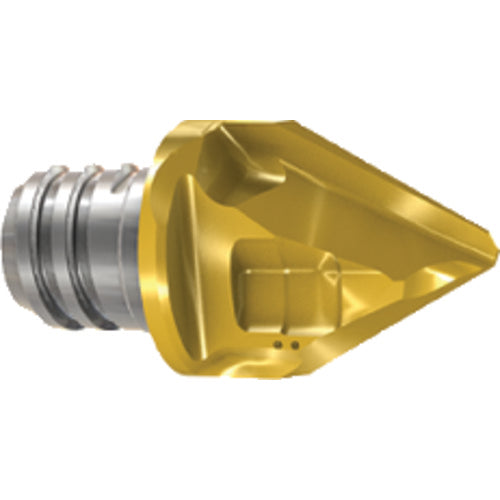

MM HCD.375-100-2T06 IC908
Item #: EH5668983
Brand: Iscar
Model #: 5668983
| Product Specifications | |
|---|---|
| Application | | Countersinking | Drill Mill | Slanted Shoulder & Chamfer | |
| Grade | IC908 |
| Cutting Diameter (DC) | 0.079″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Profile Angle (PRFA) | 140 |
| Flute Count (NOF) | 2 |
| Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.374″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.382″ |
| Tool Type | Solid chamfering endmills |
| Connection Diameter Machine Side (DCONMS) | 0.374″ |
| Body Material | Carbide |
| Functional Length (LF) | 0.528″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 0.792″ |
