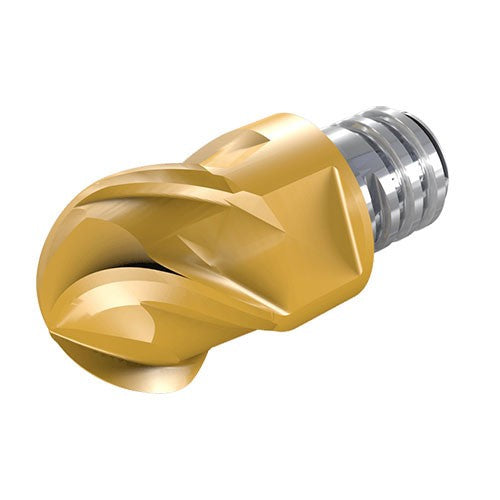

MM EBC.312B20-4T05CF IC903
Item #: EH563326622
Brand: Iscar
Model #: 3326622
| Product Specifications | |
|---|---|
| Application | | Profiling | |
| Overall Length (OAL) | 0.67″ |
| Cutting Diameter (DC) | 0.312″ |
| Grade | IC903 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 0.156″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2″ |
| Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 0.3″ |
| Body Material | Carbide |
| Functional Length (LF) | 0.39″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 45 Degrees |
