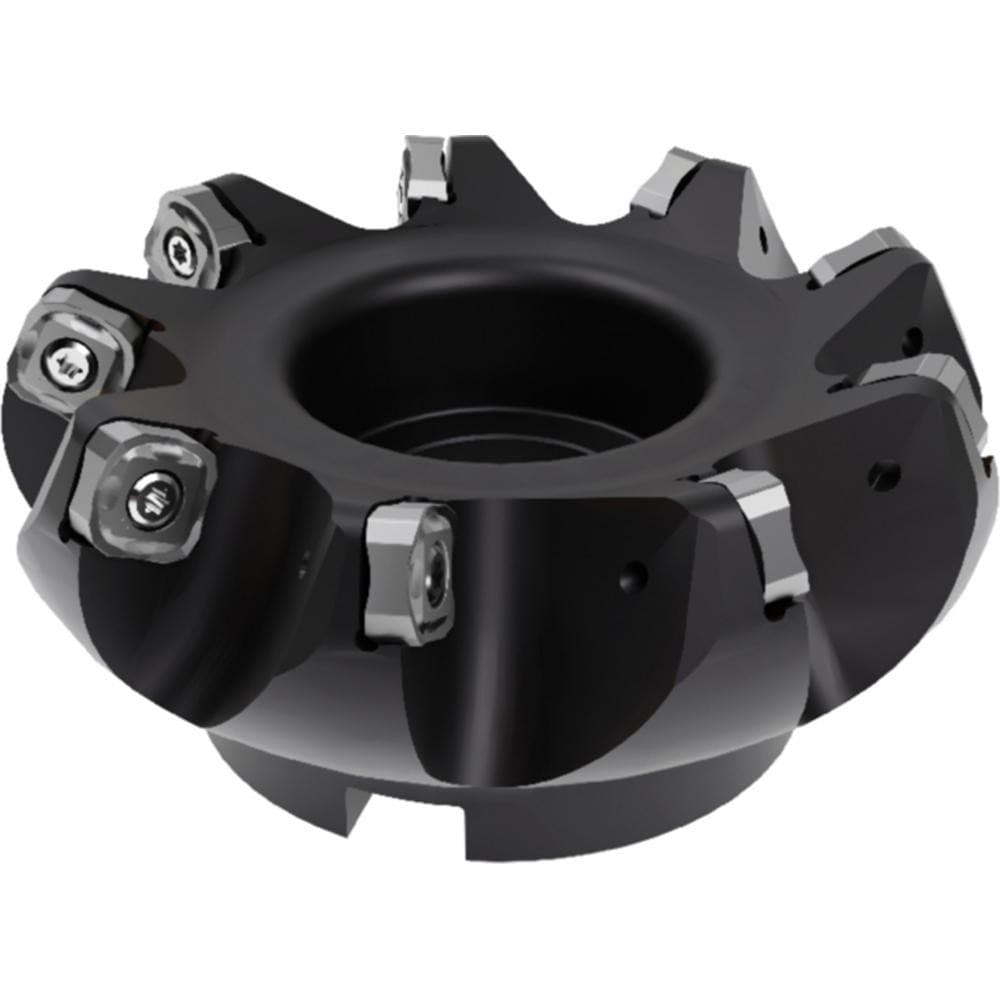

Brand: Widia / Part #: 6921246
Item #: 99600470
Brand: Widia
Model #: 6921246
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 5.3480 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Lead Angle | 64.000 |
| Compatible Insert Size Code | 150612 |
| Cutter Style | M8065 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M8065HD |
| Hub Diameter (mm) | 96.770 |
| Overall Height (Decimal Inch) | 2.3800 |
| Maximum Body Diameter (Decimal Inch) | 5.5118 |
| Maximum Body Diameter (mm) | 140.00 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SNMX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M8065HU500Z09S150SN15 |
| Number Of Cutter Inserts | 9 |
| Coolant Through | No |
| Number Of Flutes | 9 |
