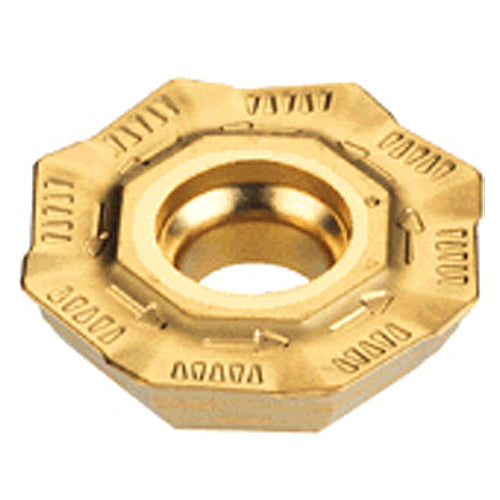

OFMT 0706 AER-76
Item #: EH5604326
Brand: Iscar
Model #: 5604326
| Product Specifications | |
|---|---|
| Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys |
| Grade | IC328 |
| Corner Radius (RE) | 0.024″ |
| Shape | 135° Octagon |
| Depth of Cut Maximum (APMX) | 0.134″ |
| Maximum Feed per Tooth (fz(max)) | 0.0138 inch/tooth |
| Inscribed Circle Diameter (IC) | 0.701″ |
| Cutting Edge Material | Carbide |
| Insert Thickness (S) | 1/4″ |
| Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.069″ |
| Minimum Feed per Tooth (fz(min)) | 0.0079 inch/tooth |
| Coating | TiCN |
