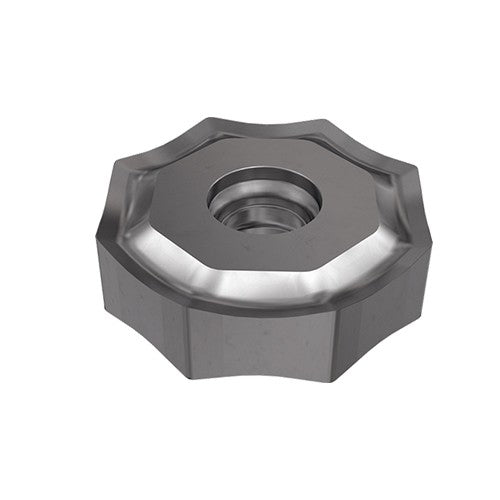

ONMU 080608 AN-N-HP IC328
Item #: EH455605933
Brand: Iscar
Model #: 5605933
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Shape | 135° Octagon |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.217″ |
| Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.236″ |
| Minimum Feed per Tooth (fz(min)) | 0.0098 ″/tooth |
| Insert Included Angle (EPSR) | 135 Degrees |
| Measurement Type | Inch |
| Coating | TiCN |
| Body Material | Carbide |
| Grade | IC328 |
