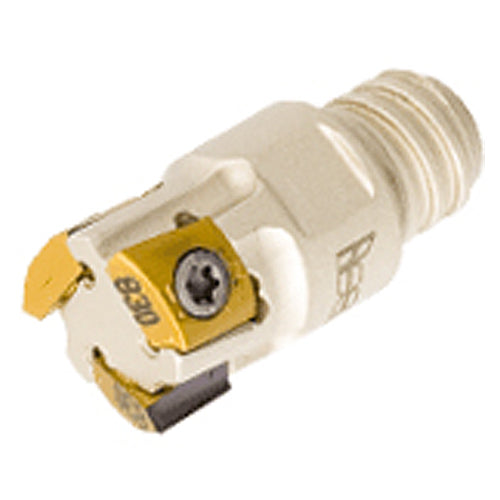

T290 ELN D12-03-MMT08-05
Item #: EH3105176
Brand: Iscar
Model #: 3105176
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 12 mm |
| Tool Type | 90° indexable endmills |
| Cutting Diameter (DC) | 12 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Item Count (CICT) | 3 |
| Drive Size (DRVS) | 10 mm |
| Depth of Cut Maximum (APMX) | 5 mm |
| Flute Count (NOF) | 3 |
| Overall Length (OAL) | 24 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Counter Boring | Facing | Shouldering | Slotting | |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | T290 LNHT 050202TR |
| Body Material | Steel |
| Weight of Item (WT) | 0.01 Kg |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 16 mm |
