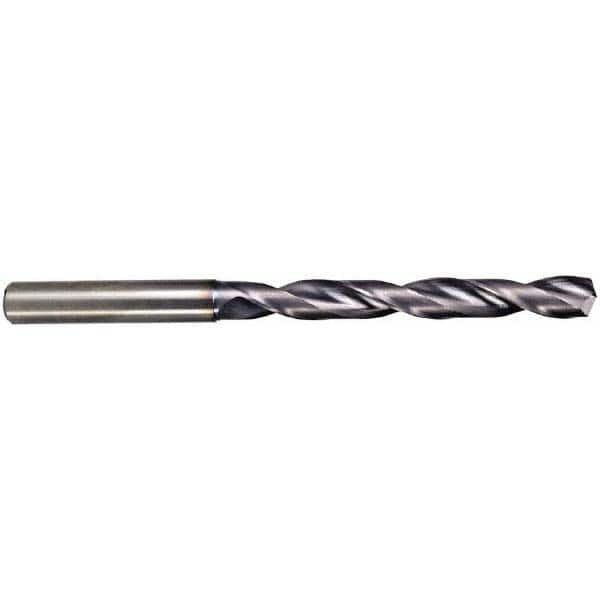

M.A. Ford - 9mm 142° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 73992695
Brand: M.A. Ford
Model #: 2XDCL3543A
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
ALtima is a stronger AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 9.00 |
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Flute Length (mm) | 80.00 |
| Overall Length (mm) | 127.00 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 10.00 |
| Flute Length x Diameter Ratio | 7xD |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.015 |
| Series/List | 2XDCL |
