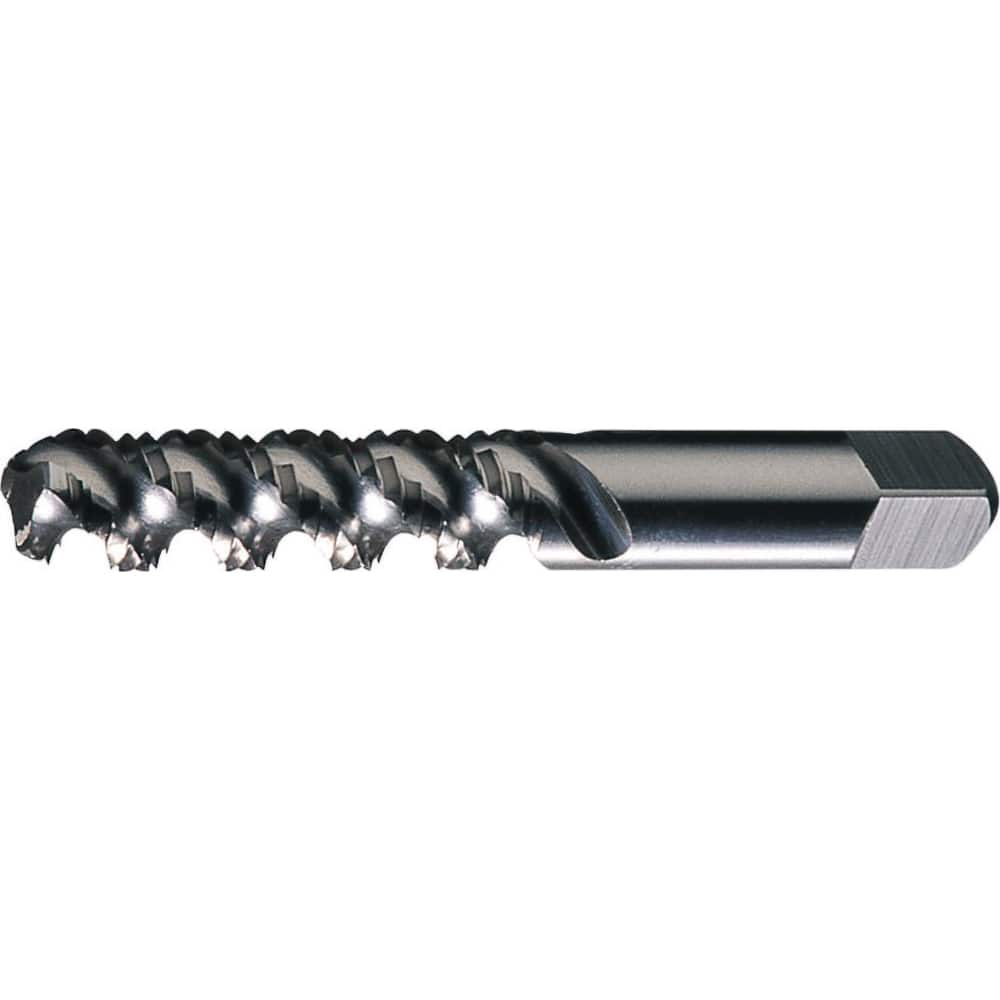

Spiral Flute Tap: 1/2-13, UNC, 3 Flute, Modified Bottoming, High Speed Steel, Bright/Uncoated 1.656″ Thread Length, 3.375″ OAL, Right Hand Flute, Right Hand Thread, H11, Series SFGP+5
Item #: 96933874
Brand: Greenfield Threading
Model #: 313533
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Size (Inch - 0 Decimals) | 1/2-13 |
| Thread Standard | UNC |
| Thread Limit | H11 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.6560 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M2 |
| Amount Oversize (Decimal Inch) | 0.0050 |
| Application | Blind Hole Threading |
| Oversize | Yes |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Tapping Depth (Decimal Inch) | 1.6560 |
| Square Length (mm) | 11.11 |
| Square Length (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.2750 |
| Square Size (mm) | 6.99 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Carbon Steel |
| Series | SFGP+5 |
| Coolant Through | No |
| Teeth per Inch | 13 |
| Number Of Flutes | 3 |
| Product Service Code | 5136 |
