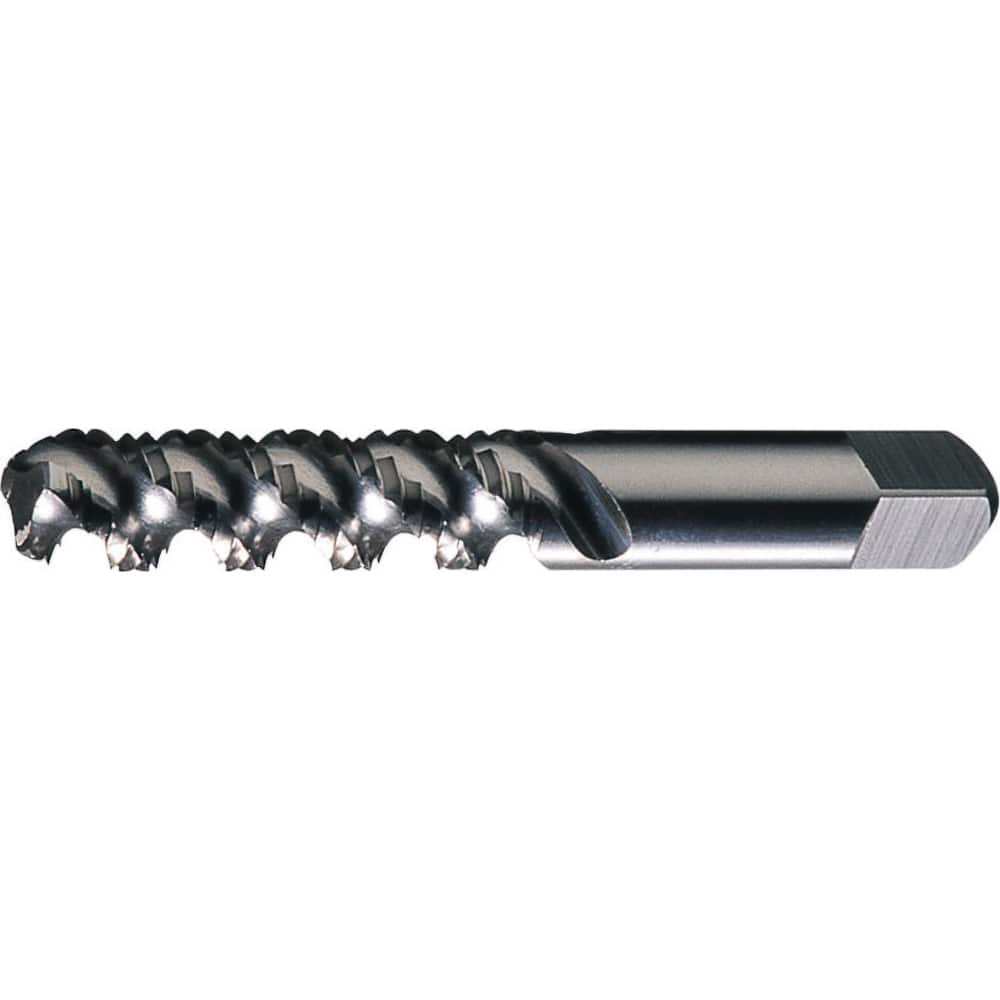

Spiral Flute Tap: M6 x 1.00, Metric, 3 Flute, Modified Bottoming, High Speed Steel, Bright/Uncoated 1″ Thread Length, 2.5″ OAL, Right Hand Flute, Right Hand Thread, D11, Series SFGP+5
Item #: 96933734
Brand: Greenfield Threading
Model #: 313539
Product Specifications
| Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Thread Size (mm) | M6 x 1.00 |
| Thread Standard | Metric |
| Thread Limit | D11 |
| Thread Pitch (mm) | 1.00 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | M2 |
| Amount Oversize (Decimal Inch) | 0.0050 |
| Application | Blind Hole Threading |
| Oversize | Yes |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Tapping Depth (Decimal Inch) | 1.0000 |
| Tapping Depth (Fractional Inch) | 1 |
| Square Length (mm) | 7.94 |
| Square Length (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.1910 |
| Square Size (mm) | 4.85 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Carbon Steel |
| Series | SFGP+5 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Product Service Code | 5136 |
