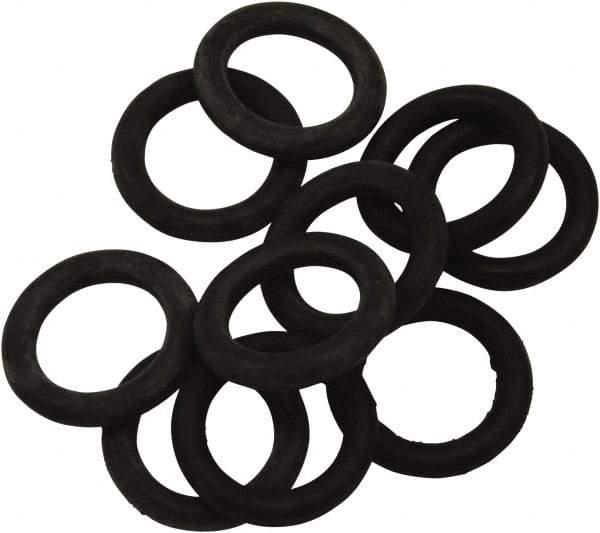

Acorn Engineering - 0.484" ID x 0.762" OD, EPR O-Ring - 1/8" Thick, Round Cross Section, 50 Durometer
Item #: 69568665
Brand: Acorn Engineering
Model #: 0403-206-001
Exact Tooling IR#: 04
Features and Benefits
Round cross-section shapes can be used in both static and dynamic applications. They are used as a mechanical seal or gasket and are seated in a groove and compressed during assembly between two or more parts.
EPR is an ethylene-propylene copolymer that offers excellent resistance to fluids used in commercial aircraft hydraulic systems. They also are recommended for hot water, steam, and phosphate ester-type hydraulic fluids. Not recommended for petroleum fluids or diester lubricants.
| Product Specifications | |
|---|---|
| Cross Section Shape | Round |
| Material | EPR |
| Dash Number | 206 |
| System of Measurement | Inch |
| Durometer | 50 |
| Inside Diameter (Decimal Inch) | 0.4840 |
| Outside Diameter (Decimal Inch) | 0.7620 |
| Thickness (Decimal Inch) | 0.1250 |
