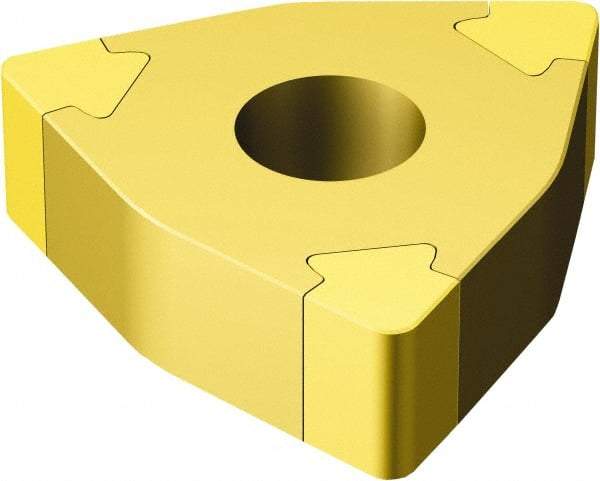

Sandvik Coromant - WNGA332 Grade 7015 Carbide Turning Insert - TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 52086741
Brand: Sandvik Coromant
Model #: 5756197
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNGA |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 2.40 |
| Length (Decimal Inch) | 0.0945 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 7015 |
| Coating | TiN |
| Insert Length (Decimal Inch) | 0.0945 |
| OverallLength (mm) | 6.52 |
| Overall Length (Decimal Inch) | 0.2565 |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNGA060408T01030AWH 7015 |
| Relief Angle | 0 |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
