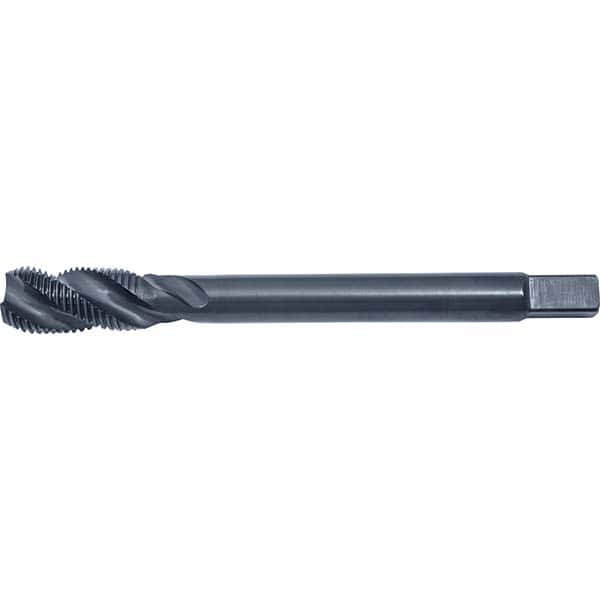

Spiral Flute Tap: #6-32, DIN, 3 Flute, Modified Bottoming, 2B Class of Fit, Black Oxide Finish 0.787″ Thread Length, 2.2047″ OAL, Right Hand Flute, Right Hand Thread, Series PRO-981SF
Item #: 18156463
Brand: Cleveland
Model #: C98106
Product Specifications
| Coating/Finish | Black Oxide |
| Thread Size (Inch - 0 Decimals) | #6-32 |
| Thread Standard | DIN |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 2.2047 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Material Grade | HSS-E |
| Helix Angle | 38 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.3940 |
| Square Length (mm) | 4.83 |
| Square Length (Decimal Inch) | 0.1900 |
| Square Size (Decimal Inch) | 0.1900 |
| Flute Style | Spiral |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; Low Carbon Steel |
| Series | PRO-981SF |
| Helix Angle Range | 15 to 45 |
| Coolant Through | No |
| Teeth per Inch | 32 |
| Number Of Flutes | 3 |
| Class Of Fit | 2B |
| Product Service Code | 5133 |
