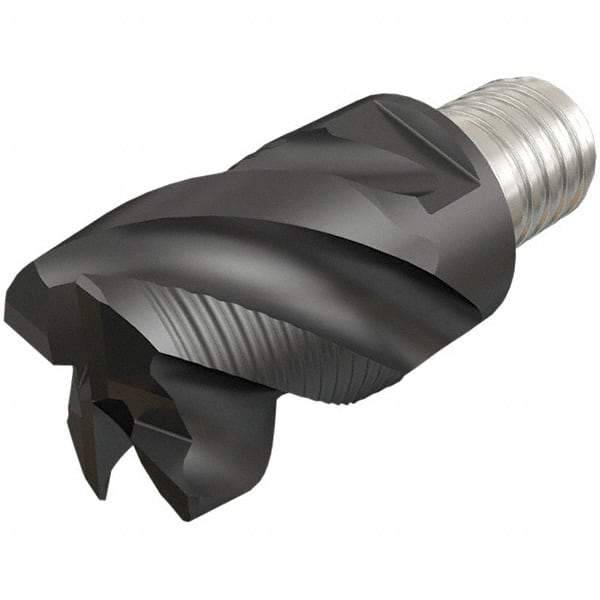

Iscar - MM EFS Grade IC908 Carbide End Milling Tip Insert - TiAlN Finish, 4 Flutes, 5/8" Cutting Diam, 0.47" Depth of Cut, 0.8" Extension, 45° Helix
Item #: 09826975
Brand: Iscar
Model #: 5622180
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Milling Tip Style | MM EFS |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.4700 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.8000 |
| Thread Size | T10 |
| Helix Angle | 45 |
