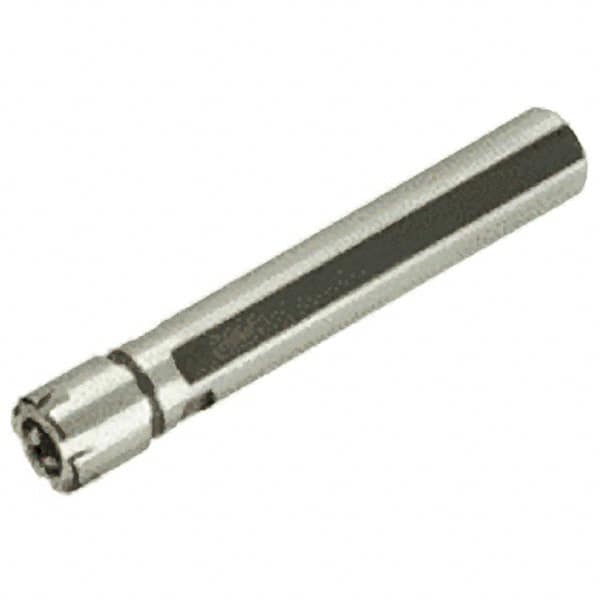

Iscar - 0.5mm to 10mm Capacity, 28mm Projection, Straight Shank, ER16 Collet Chuck - 128mm OAL, 22mm Shank Diam
Item #: 07543648
Brand: Iscar
Model #: 4501992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Projection (mm) | 28.00 |
| Projection (Decimal Inch) | 1.1024 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 128.00 |
| Overall Length (Decimal Inch) | 5.0394 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
